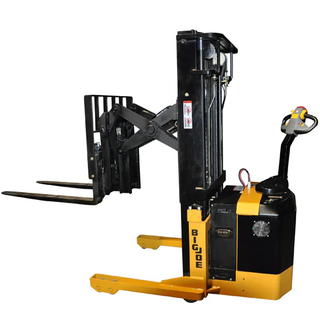

Big Joe PDSR AC Walkie Reach Stacker

The PDSR combines the tight turning characteristics and low operating cost of a walkie straddle stacker with the flexibility of a counterbalanced truck through the use of a pantograph. This mechanism extends the loads being handled beyond the straddle legs to lift or lower products and can be retracted for compact turns. With the addition of power steering, sideshift, proportional hydraulics, and tilt, the PDSR delivers exceptional versatility and easy intuitive control.

CAPACITY

3000 lbs. at 24" load center

Speed variable from 0 mph to 3.1 mph loaded

Lift up to 20 fpm loaded—3000lbs

STANDARD EQUIPMENT

  • Power Steering
  • Pantograph with Sideshift and Tilt
  • Proportional Lift, Lower & Extend
  • Regenerative Braking
  • Low Battery — Interrupt
  • Hour Meter BDI Combo Gauge

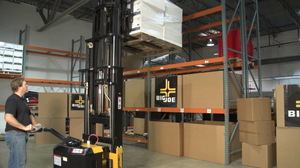

Demo Video

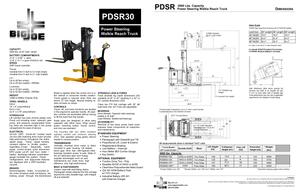

Download Brochure
